Poe Ethernet Switch Network 8 Ports with 1 Gigabit Combo Port DC48V

Name: Poe Ethernet Switch Network 8 Ports with 1 Gigabit Combo Port DC48V
Brand: Hioso
Price: 1 USD

Wholesale Poe Ethernet Switch Network 8 Ports with 1 Gigabit Combo Port DC48V from china suppliers

Place of Origin : China, Guang dong

Brand Name : Hioso

Model Number : FOWAY1309PFC

MOQ : 1-99 Pieces

Price : Negotiable

Certification : CE, RoHS, CCC

Payment Terms : D/A, D/P, T/T, Western Union,

Supply Ability : 1000pcs/month

Delivery Time : 5-10working days

Packaging Details : 60*45*34cm Carton

Item : 8 port poe switch

Transmission rate : 1000Mbps

Function : POE,Industrial

MAX output power : 250W ( single port:15.4W)

Power supply : AC110V/220V

POE Standard : IEEE802.3AF/AT

Contact Now

Poe Ethernet Switch Network 8 Ports with 1 Gigabit Combo Port DC48V

Product Description

Network 8 Ports Poe Ethernet Switch with 1 Gigabit Combo 48V for Hikvision IP Camera

Character

l Support Maximum 8 100M PoE ports and 1 1000M Combo port (100M/1000M SFP port and 10/100/1000M RJ45 port optional)

l Each PoE port supports to auto discovery the standard power receiving devices

l Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards

l Support each port full rate, full-duplex non-blocking forwarding

l Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth

l Each RJ45 port using anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

l Support to provide wall-mounted hanger better for installation if need, metal casing better for heat dissipating

Poe Ethernet Switch Network 8 Ports with 1 Gigabit Combo Port DC48V

Technical Specification

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree
PoE	Power supply ports: 8 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/ cutting
Wavelength	SFP modules: 850nm/1310nm/1490nm/1550nm
Distance	100M SFP multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode: 220m (fiber 62.5/125μm)/ 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m
Port	8 100M RJ45 ports (PoE optional): 10/100Mbps 1 1000M Combo port: 1 Gbps, 100M/1000M SFP&10/100/1000M RJ45
MAC	8K
Buffer memory space	1Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC48V(External power), AC110V/220V & DC48V redundant power back up(Internal power)
Power consumption	10W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	28mm (H)×193mm(W)×119mm (D)

Production Flow

Poe Ethernet Switch Network 8 Ports with 1 Gigabit Combo Port DC48V

Product Category

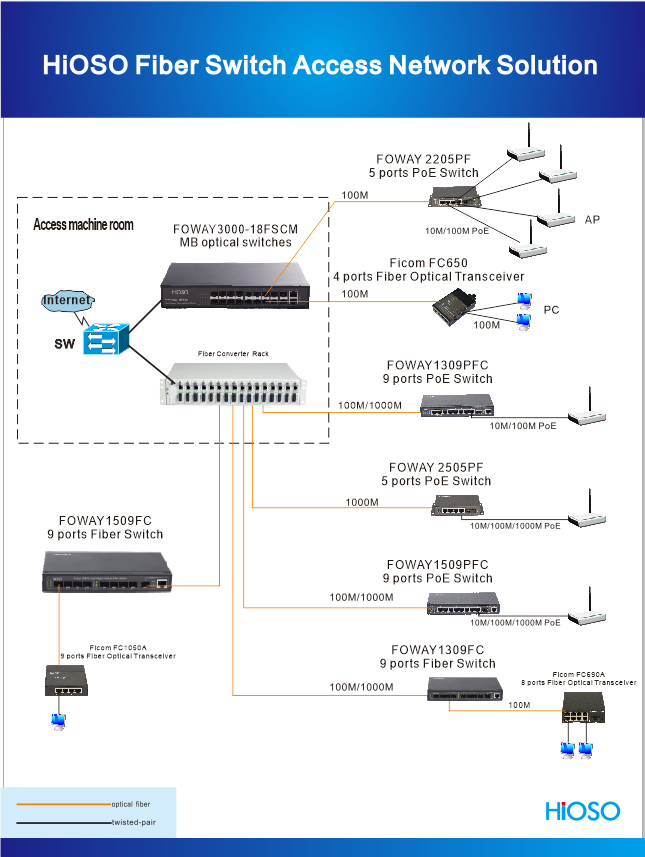

solution
